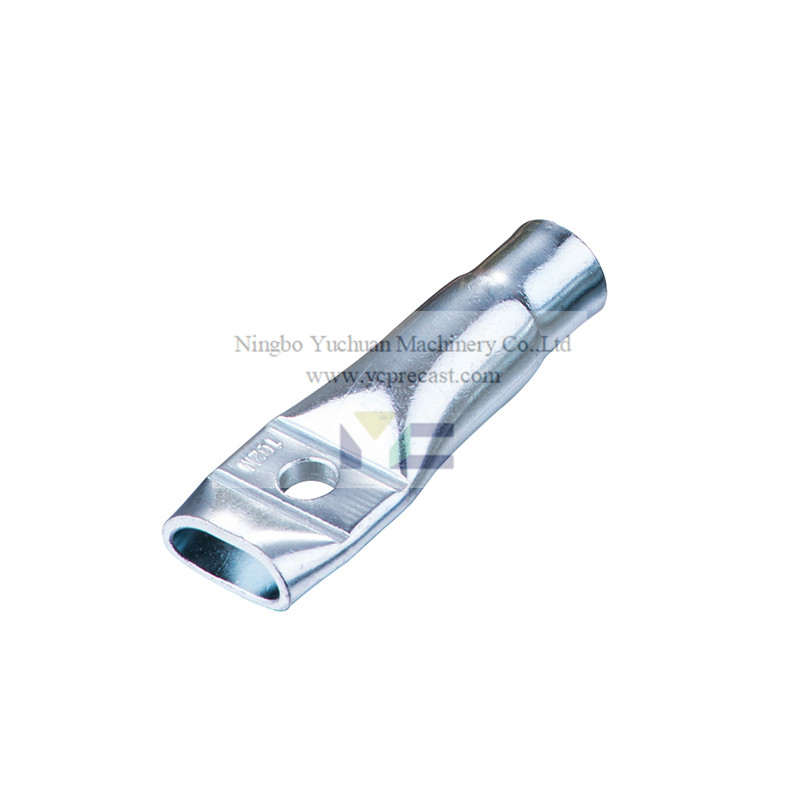

●Fixing sockets must not be used for lifting but exclusively for fixing and transporting of light precast concrete units,A reinforcement bar has to be inserted through the cross hole, thus a safe transmission of the static forces into the concrete is guaranteed.
●Fixing sockets are manufactured from steel precision tube.
|
Material:Seamless Precision tube.; Stainless steel available on request |
|
Surface:Zinc Plating white/yellow; H.D.G available on request. |
|
Part No |
Type M |
Length(mm) |
Packing-unit pieces |
Weight kg/packing unit |
SWL （kg） |
|
YC01810106040 |
M6 |
40 |
500 |
3.5 |
150 |
|
YC01810108040 |
M8 |
40 |
500 |
4.5 |
200 |
|
YC01810108050 |
M8 |
50 |
500 |
5.5 |
250 |
|
YC01810110050 |
M10 |
50 |
500 |
10 |
350 |
|
YC01810112060 |
M12 |
60 |
400 |
16.8 |
500 |
|
YC01810112070 |
M12 |
70 |
400 |
19.6 |
600 |
|
YC01810116070 |
M16 |
70 |
200 |
18.2 |
700 |
|
YC01810116080 |
M16 |
80 |
200 |
20.4 |
800 |
|
YC01810116100 |
M16 |
100 |
100 |
13.4 |
1000 |
|
YC01810116120 |
M16 |
120 |
100 |
15.7 |
1200 |
|
YC01810120100 |
M20 |
100 |
100 |
16.5 |
1250 |
|
YC01810120120 |
M20 |
120 |
100 |
21 |
1400 |
|
YC01810124120 |
M24 |
120 |
50 |
16.7 |
1800 |
|
YC01810130150 |
M30 |
150 |
25 |
13.8 |
2750 |
|
|
